How to Install Shower Floor Tile: A Step-by-Step Guide

Installing shower floor tile comes down to five stages: building a properly sloped and waterproofed substrate, choosing a tile format that conforms to that slope, setting the tile with attention to the drain transition, grouting with a joint width appropriate to the tile size, and sealing. The floor is the highest-risk part of any shower installation, since it combines constant water exposure with a sloped surface, so getting the substrate and layout right matters more here than almost anywhere else in the shower.

This guide assumes your substrate is already built and waterproofed. If you have not gotten that far yet, see our Shower Floor Substrates guide to choose between a mud pan and a Schluter Kerdi system first.

Table of Contents

• Choosing the Right Tile Format for a Sloped Floor
• Tools and Materials You Will Need
• Step 1: Confirm the Substrate Is Ready
• Step 2: Plan Your Layout Around the Drain
• Step 3: Dry Lay to Check Sheet Conformity
• Step 4: Apply Thinset and Set the Tile
• Step 5: Cut Tile at the Drain and Perimeter
• Step 6: Grout and Seal
• Common Mistakes to Avoid

Choosing the Right Tile Format for a Sloped Floor

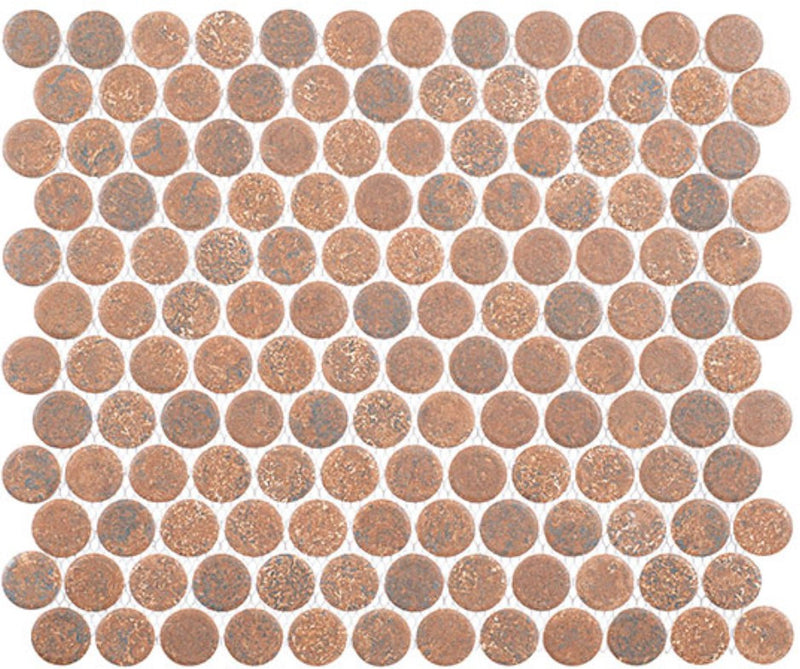

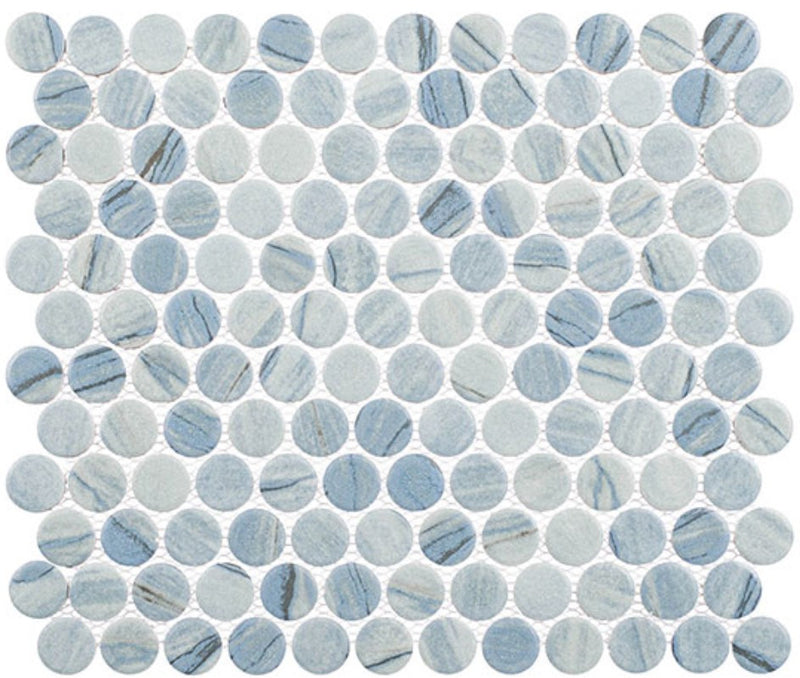

Small-format tile and mosaic sheets are the standard choice for shower floors because they conform to the slope with more grout lines providing traction and flexibility across the sloped, curved transitions near the drain. Large-format tile is difficult to use on a sloped shower floor since a rigid, large piece cannot flex to follow the slope evenly, and can create high spots or an uneven surface near the drain. If you have not settled on a tile yet, see our Ultimate Guide to Choosing Shower Floor Tile and our guide to non-slip shower floor tile.

Tools and Materials You Will Need

• Notched trowel, sized to your tile or mosaic sheet
• Modified thinset mortar
• Tile spacers
• Tile nippers or a wet saw for drain-area cuts
• Rubber grout float or flat block for bedding mosaic sheets
• Grout appropriate to your joint width
• Grout sealer
• Level (used to check for consistent slope, not to level the floor flat)

Step 1: Confirm the Substrate Is Ready

Before setting any tile, confirm your waterproofing is fully cured and the slope is consistent, checking with a level that water would travel toward the drain from every direction. Fixing a slope problem after tile is set is far more difficult and expensive than catching it now.

Step 2: Plan Your Layout Around the Drain

Unlike a flat floor, shower floor layout starts at the drain and works outward, since the drain is a fixed point that every row or sheet has to align with cleanly. Dry lay tile or mosaic sheets from the drain toward the perimeter in multiple directions to see how the pattern meets the walls and curb, adjusting your starting point if needed before committing to thinset.

Step 3: Dry Lay to Check Sheet Conformity

If you are using mosaic sheets, lay a section over the dry, unset slope to confirm the sheet flexes and follows the grade without gapping or buckling at the seams. Some sheet backings conform better to slope than others, and this is the point to discover a poor fit, not after thinset is already applied.

Step 4: Apply Thinset and Set the Tile

Apply thinset with a notched trowel over a small section at a time, working from the drain outward. Press mosaic sheets into place with a rubber grout float or a flat block, applying even pressure to bed the sheet fully into the sloped substrate without flattening the slope itself. Check periodically that you have not inadvertently created a flat or reverse-sloped area by over-pressing one section more than another.

Step 5: Cut Tile at the Drain and Perimeter

Use tile nippers for small, irregular cuts around the drain body and a wet saw for straighter perimeter cuts where the floor meets the walls or curb. Dry fit every cut piece before setting it, since the drain area typically requires more customized cuts than any other part of the installation.

Step 6: Grout and Seal

Let the thinset cure fully, typically 24 to 48 hours, before grouting. Shower floors generally use sanded grout due to the wider joint spacing common with small-format and mosaic tile. For technique on mixing and applying grout, see our How to Grout Tiles guide. Once cured, seal the grout with a penetrating sealer, and plan to reseal shower floor grout more frequently than other areas of the home given the constant water exposure.

Common Mistakes to Avoid

• Using large-format tile that cannot properly conform to the required slope
• Starting layout from a wall instead of the drain, leading to awkward cuts at the most visible point of the floor
• Pressing mosaic sheets unevenly, flattening sections of the slope and creating standing water
• Rushing drain-area cuts, leaving gaps that compromise the waterproofing at the most critical point of the floor
• Using ungrouted or improperly sealed grout in a high-water-exposure area
